A standby generator protects your home when the power goes out. In storm-prone areas like Lakeland, many homeowners rely on Generac backup generators to keep lights, appliances, and critical systems running. These systems are designed to operate automatically. However, like any electrical equipment, they sometimes display error codes when something is wrong.
One message homeowners occasionally see is Generac error code 2800. When this code appears, the generator usually stops running and enters a shutdown mode. This can be frustrating, especially during a power outage. Fortunately, the issue is often related to the generator’s safety system and can sometimes be fixed with simple troubleshooting.
Error code 2800 usually points to an auxiliary shutdown problem. In other words, the generator’s safety circuit has been triggered or interrupted. This safety feature protects the equipment and anyone working around it.
In this guide, we explain what this code means and why it appears. We will also cover common causes, basic troubleshooting steps, and when it is best to call a generator repair technician in Lakeland.

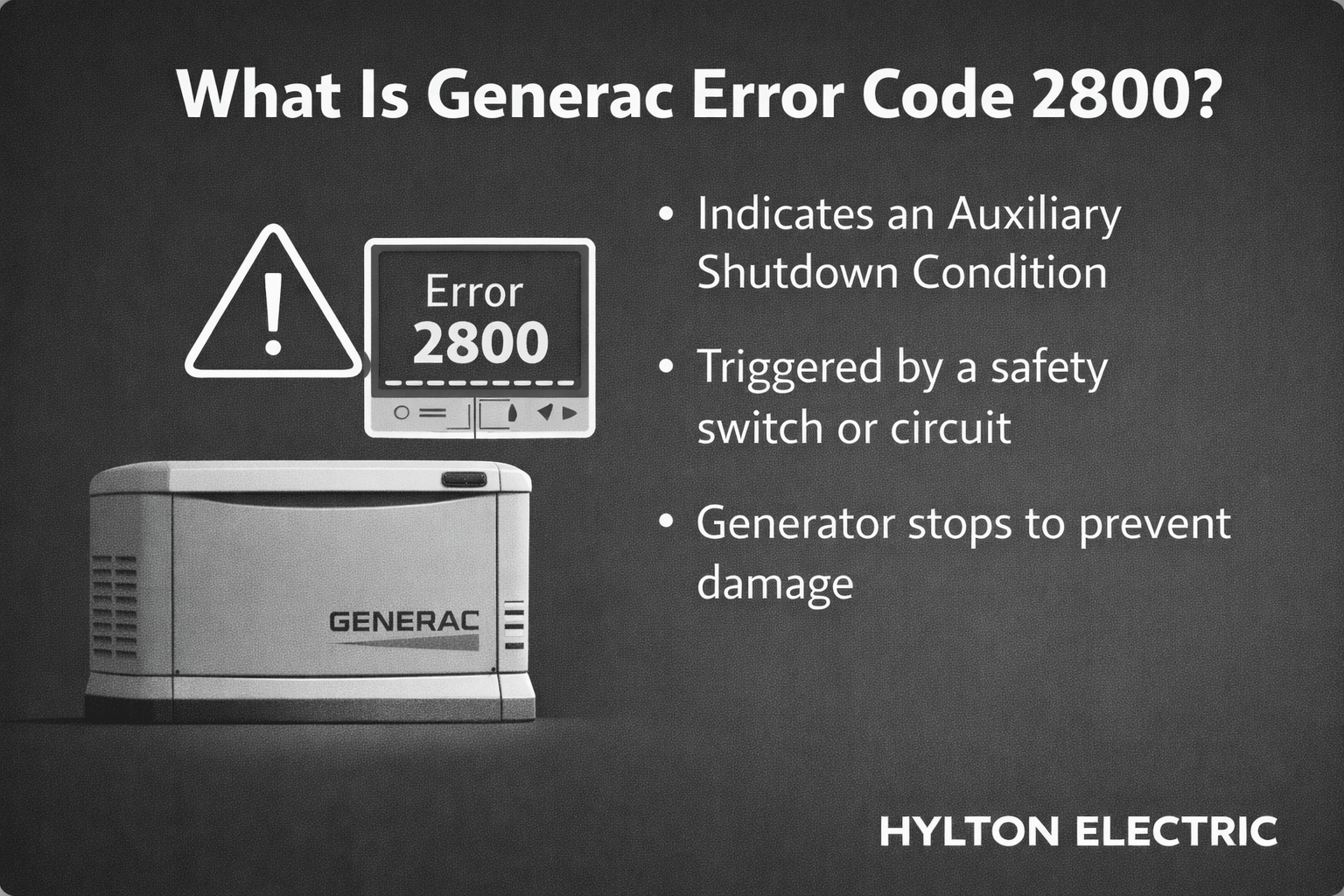

What Does Generac Error Code 2800 Mean?
Generac generators include several built-in safety systems. These systems monitor the generator while it runs. If something unusual happens, the generator shuts down to prevent damage or safety risks.
Error code 2800 indicates an auxiliary shutdown condition. This means the generator detected a signal from a safety switch or circuit that forced the unit to stop operating.
Most of the time, the generator itself is not damaged. Instead, the system is responding to a safety input. Once the issue is corrected, the generator can usually return to normal operation.
Understanding how this safety system works can help you troubleshoot the problem faster.
Auxiliary Shutdown Explained
An auxiliary shutdown is a safety feature found in many standby generators. It allows external switches or safety devices to stop the generator if needed.
These shutdown circuits are often connected to:
-
Emergency stop switches
-
Fire safety systems
-
External control panels
-
Maintenance safety switches
If one of these components sends a shutdown signal, the generator controller immediately stops the engine. This design prevents the generator from running when it might be unsafe. For example, technicians may activate the shutdown switch while performing maintenance.
However, if the switch is accidentally triggered or a wire becomes loose, the controller may still detect the shutdown signal. When that happens, the system displays error code 2800.
Where the Auxiliary Shutdown Switches Are Located
Auxiliary shutdown switches can appear in several places, depending on the generator installation.
Common locations include:
-
Inside the generator control panel
-
On an external emergency stop switch near the unit
-
In a remote monitoring panel
-
Within certain building safety systems
Some installations include both an internal and external switch connected to the same safety circuit.
If either switch is in the OFF position, the generator will not run. The controller will instead display a shutdown message and store the fault code. Because of this design, one of the first things technicians check during a service call is the position of these switches.
Why Generac Uses Safety Shutdown Systems
Standby generators operate with fuel, electricity, and moving engine parts. Because of this, manufacturers include multiple safety features to prevent accidents or equipment damage.
Auxiliary shutdown systems serve several important purposes.
- First, they protect technicians.
When a technician is servicing the generator, a shutdown switch prevents the engine from starting unexpectedly.
- Second, they reduce the risk of equipment damage.
If a connected safety system detects a problem, the generator shuts down before a major failure occurs.
- Third, they improve overall system reliability.
By stopping the generator during abnormal conditions, the system avoids overheating, electrical faults, or mechanical stress.
These safety systems are one reason Generac generators are widely used for home backup power. However, they can also trigger error codes when switches, wiring, or sensors develop minor issues.
Common Causes of Generac Error Code 2800
Several different conditions can trigger a 2800 shutdown code. In many cases, the cause is simple and easy to fix. However, some situations may require professional generator service.
Below are the most common reasons homeowners see this error.
Emergency Stop Switch Left in the OFF Position
One of the most frequent causes is an emergency stop switch that was left off.
This often happens after:
-
Routine generator maintenance
-
Electrical inspections
-
System testing by a technician
During service, the technician may turn the emergency switch off to prevent the generator from starting. If the switch is not returned to the ON position afterward, the generator will remain in shutdown mode.
Landscaping or accidental bumps can also trigger the switch on some installations. Because this is such a common issue, it is usually the first thing technicians check when diagnosing error code 2800.
Loose or Damaged Wiring
Another possible cause is a problem in the shutdown circuit wiring. Generators operate outdoors, where wiring can experience wear over time. Weather, moisture, and animals can all affect electrical connections.
Some common wiring issues include:
-
Loose wire connections
-
Corroded terminals
-
Broken shutdown circuit wires
-
Rodent-damaged insulation
If the controller detects an open circuit, it may interpret the signal as an active shutdown command. As a result, the generator displays the error code and stops running.
Faulty Auxiliary Shutdown Switch
In some cases, the shutdown switch itself may be worn out or defective. Like any electrical component, switches can degrade with age. Dust, corrosion, or moisture may prevent the internal contacts from closing properly.
When the switch fails, the controller may believe the shutdown circuit is still active. Even if the switch appears to be in the ON position, the generator may continue to show the 2800 error. Testing or replacing the switch often resolves the issue.

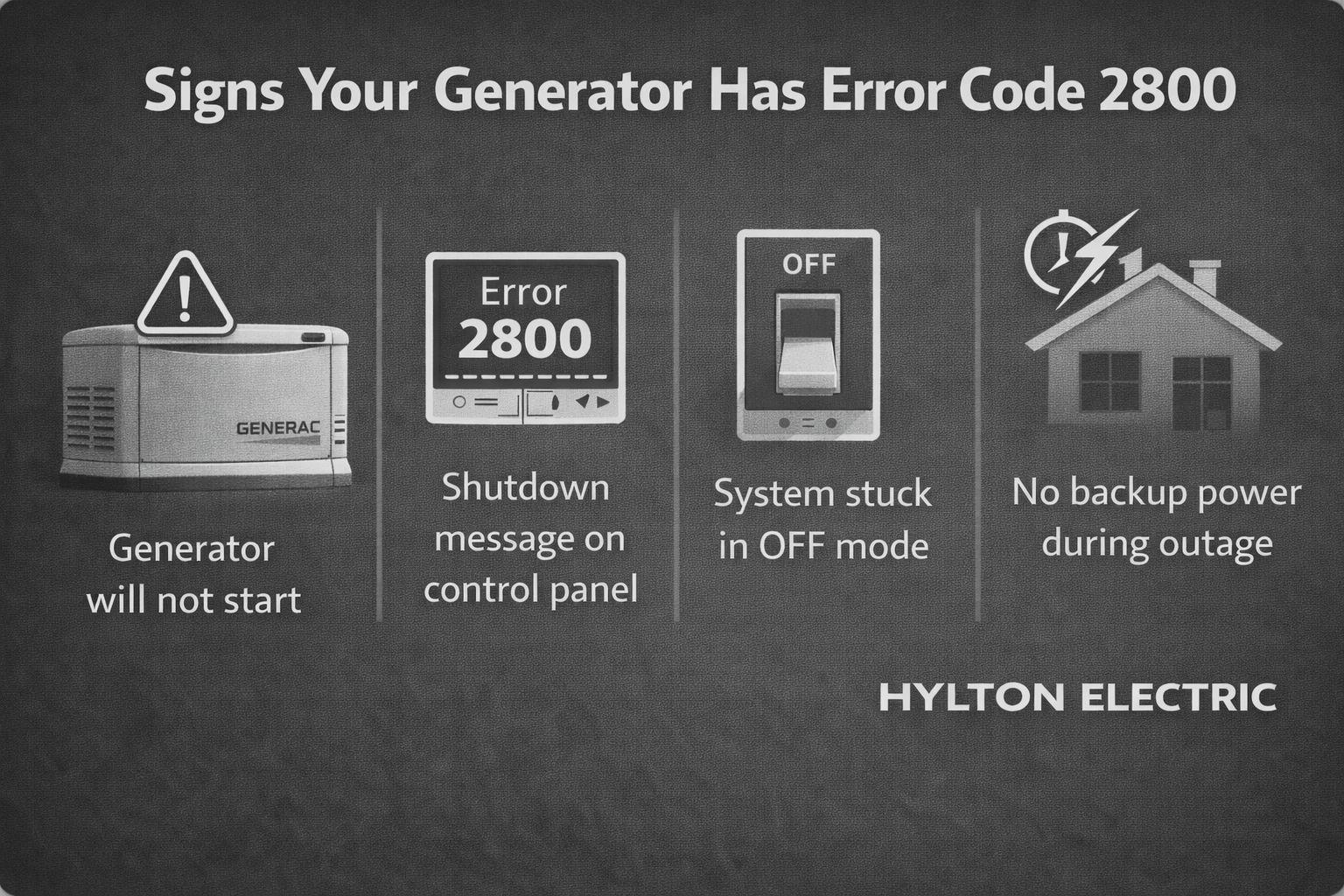

Symptoms That Appear With a Generac 2800 Error Code
When a generator enters auxiliary shutdown mode, it usually shows several warning signs. These symptoms help confirm that the shutdown circuit has been triggered.
In many cases, the generator will stop operating entirely until the fault is cleared. Because standby generators work automatically, homeowners may only notice the problem when the power goes out and the unit fails to start.
Below are some of the most common symptoms associated with Generac error code 2800.
- The generator will not start
One of the first signs is that the generator refuses to start. Even when the system attempts its weekly exercise cycle, the unit remains off because the controller detects a shutdown condition.
- A shutdown message appears on the control panel
The generator display often shows a warning such as:
-
“Auxiliary Shutdown”
-
“Error Code 2800”
-
“Generator Fault Detected”
This message stays on the screen until the issue is corrected and the fault is cleared.
- The generator remains stuck in OFF mode
In some cases, the controller may switch the system from AUTO mode to OFF mode. This prevents the generator from starting automatically during an outage.
- Mobile monitoring alerts
If the generator is connected to remote monitoring, homeowners may receive alerts through a mobile app or email. These alerts usually report that the generator has entered shutdown mode.
- Backup power does not activate during outages
The most serious symptom is when the generator fails to start during a power outage. This can leave the home without backup power until the issue is fixed.
If these symptoms appear together with error code 2800, the next step is to inspect the shutdown circuit and related components.

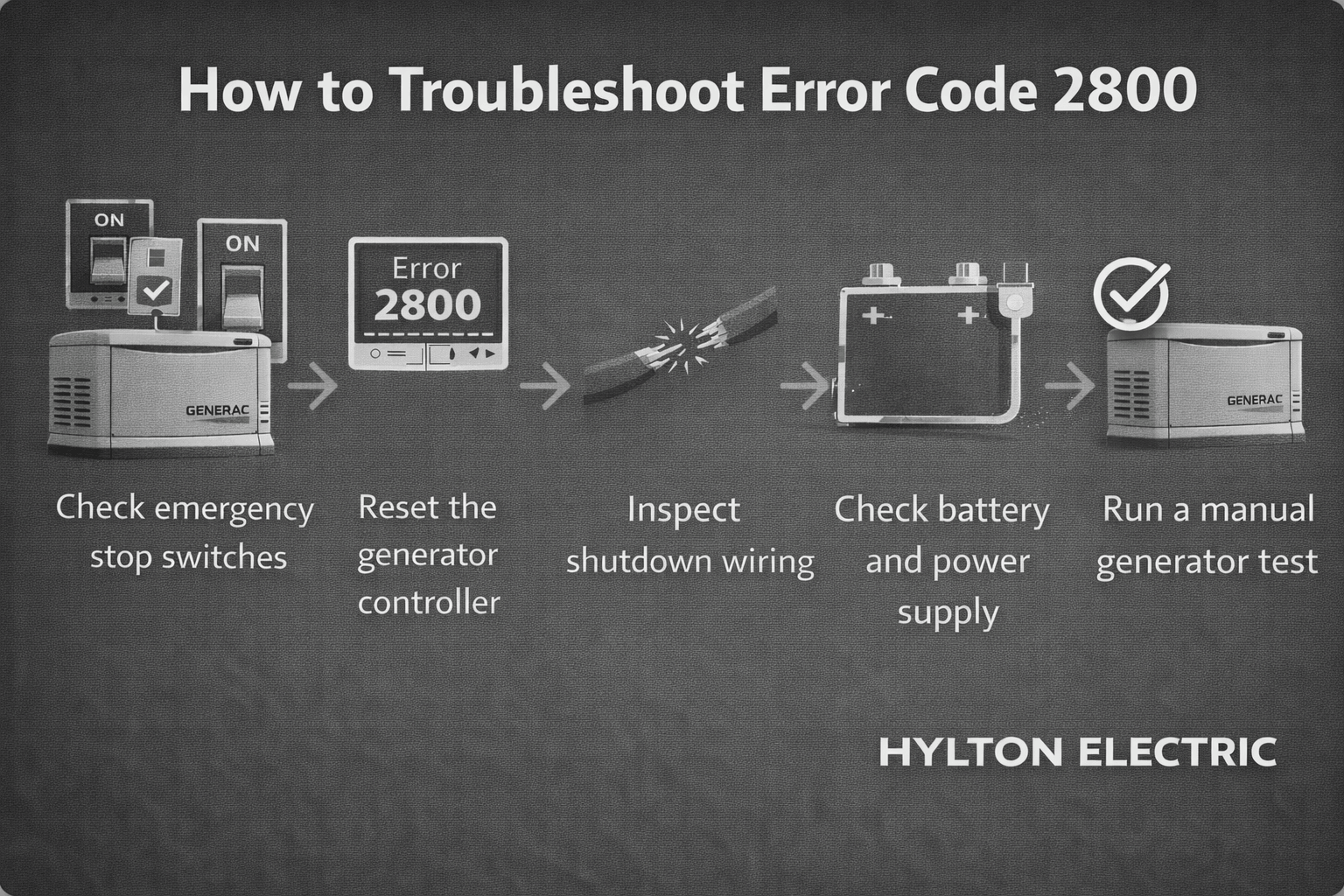

How to Fix Generac Error Code 2800 (Step-by-Step Troubleshooting)
In many situations, this error can be resolved with a few simple checks. However, always approach generator troubleshooting carefully. If you are unsure about electrical components, it is best to contact a licensed technician. Below is a step-by-step process commonly used to diagnose this issue.
Step 1: Inspect the Emergency Stop Switches
Start by checking all shutdown switches connected to the generator. Most standby generators include:
-
An internal shutdown switch inside the generator cabinet
-
An external emergency stop switch near the unit
Make sure each switch is set to the ON position. If one of them is turned off, the generator will remain in shutdown mode. Sometimes the fix is as simple as resetting the switch.
Step 2: Reset the Generator Controller
Once the switches are confirmed to be on, try clearing the error code from the control panel. Follow these basic steps:
-
Set the generator controller to OFF mode.
-
Press ENTER to clear the fault message.
-
Wait about 30 seconds.
-
Switch the generator back to AUTO mode.
This reset allows the system to restart and recheck its safety circuits. If the shutdown signal is gone, the generator should return to normal operation.
Step 3: Inspect the Safety Circuit Wiring
If the error returns after resetting, the next step is to inspect the wiring connected to the shutdown circuit. Look for signs such as:
-
Loose wire connections
-
Damaged insulation
-
Corrosion on terminals
-
Rodent damage to cables
Even a small wiring break can interrupt the safety circuit. When this happens, the controller reads the circuit as open and triggers the shutdown code. Tightening or repairing the wiring often solves the problem.
Step 4: Check the Generator Battery and Power Supply
The generator battery powers the control system and starting components. If the battery voltage drops too low, the system may display fault codes.
Check the following:
-
Battery terminals for corrosion
-
Battery voltage levels
-
Charger operation inside the generator
If the battery is weak or more than a few years old, replacing it may prevent future faults.
Step 5: Perform a Manual Generator Test
After completing the checks above, perform a manual test run. Switch the generator to manual start mode and allow it to run for several minutes. During this test, watch the control panel closely.
Pay attention to:
-
Any new error codes
-
Warning lights
-
Unusual sounds or vibrations
If the generator runs normally without displaying the 2800 code again, the issue was likely related to a switch or wiring interruption. However, if the code returns repeatedly, the system may need deeper diagnostics.
Advanced Diagnostics for Persistent Error Code 2800
Sometimes the error code continues to appear even after basic troubleshooting. When that happens, a technician may perform more detailed testing to locate the exact cause.
These advanced checks involve electrical testing and internal component inspection.
Testing Auxiliary Shutdown Circuit Continuity
A technician may use a multimeter to test the shutdown circuit. This test checks whether the circuit is properly closed. If the meter detects an open circuit, it indicates a break somewhere in the wiring or switch system.
Technicians typically inspect:
-
Auxiliary shutdown wiring
-
Emergency stop switch contacts
-
Control board connections
Finding the break allows the technician to repair the circuit and restore normal operation.
Inspecting the Generator Control Board
The generator control board manages most system functions. It monitors sensors, processes safety signals, and controls the generator engine. Although rare, the control board can sometimes cause shutdown errors.
Possible issues include:
-
Internal electronic faults
-
Signal processing errors
-
Moisture damage to components
If the board is malfunctioning, it may incorrectly interpret shutdown signals from the auxiliary circuit.
Checking for Sensor or Signal Failures
Generators rely on multiple sensors to monitor engine operation.
These sensors track:
-
Oil pressure
-
Engine temperature
-
RPM speed
-
Voltage output
If one of these sensors sends incorrect signals, the generator may trigger a shutdown condition. A technician can test these components and replace any that fail inspection. Persistent error codes often require professional diagnostic tools and experience. For that reason, many homeowners choose to contact a generator repair specialist at this stage.
When to Call a Generac Generator Repair Technician in Lakeland
Some generator issues are simple to fix. Resetting a switch or tightening a wire may clear the error quickly. However, there are situations where professional repair is the safer option.
Generators involve fuel systems, electrical wiring, and engine components. Because of this, diagnosing deeper faults requires the right tools and experience. If error code 2800 continues to appear, it may indicate a more complex problem within the shutdown circuit or control system.
Signs You Need Professional Generator Service
Homeowners should consider calling a generator technician if any of the following problems occur.
-
The 2800 error code returns after resetting the system
-
The generator fails to enter AUTO mode
-
The system does not start during a power outage
-
You notice damaged wiring or loose electrical components
-
The generator display shows multiple error codes
-
There is a burning smell or unusual noise from the unit
Repeated shutdown errors can prevent the generator from operating when you need it most. A technician can inspect the system safely and locate the root cause.
Benefits of Hiring a Licensed Generator Technician
Professional generator service offers several advantages.
- Accurate diagnostics
Technicians use specialized tools to test circuits, sensors, and generator controls. This helps identify problems quickly.
- Safe electrical repairs
Generators involve high voltage and fuel systems. Licensed technicians follow proper safety procedures while performing repairs.
- Warranty protection
Many Generac generators include manufacturer warranties. Professional service ensures repairs follow warranty guidelines.
- Reliable operation
Once the problem is corrected, a technician can test the generator to confirm it runs properly during power outages.
For homeowners in Lakeland, professional generator repair helps ensure backup power is ready when severe weather or grid failures occur.
Generac Generator Maintenance Tips to Prevent Error Code 2800
Preventive maintenance can reduce the chance of shutdown errors. A generator that receives regular service is less likely to experience wiring issues, switch failures, or system faults. Simple inspections throughout the year help keep the generator ready for emergencies.
Monthly Generator Checks
Homeowners can perform a few quick checks each month to confirm the generator is operating normally.
These checks only take a few minutes.
-
Verify the generator display shows AUTO mode
-
Look for warning lights or stored fault codes
-
Inspect the generator area for debris or obstruction
-
Check the battery condition and terminals
-
Confirm the weekly exercise cycle runs properly
If anything appears unusual, scheduling service early can prevent larger repairs later.
Annual Professional Generator Service
Most generator manufacturers recommend professional service once per year. During this visit, technicians inspect critical parts of the system.
Typical maintenance tasks include:
-
Engine oil and filter replacement
-
Air filter inspection
-
Spark plug check or replacement
-
Electrical connection testing
-
Safety circuit inspection
-
Generator load testing
Annual service ensures the generator operates correctly under full power conditions.
Protecting Your Generator From Environmental Damage
Generators are installed outdoors, which means they are exposed to weather, insects, and animals.
Taking a few preventive steps can protect the system.
-
Keep plants and landscaping at least three feet away
-
Prevent water buildup near the generator pad
-
Check for rodent nests or chewed wiring
-
Clean leaves or debris from the enclosure
These small steps help prevent wiring damage that could trigger shutdown errors like code 2800.
Why Reliable Generator Repair Matters in Lakeland
Lakeland residents rely on backup generators during storms and power interruptions. Florida weather can bring strong winds, heavy rain, and lightning that affect local power lines.
When the grid fails, a standby generator automatically restores electricity to the home. However, if the system displays an error code, the generator may not start when it is needed most.
Reliable generator repair helps homeowners maintain dependable backup power. In areas like Lakeland, generators often support essential household systems, including:
-
Refrigerators and freezers
-
Air conditioning systems
-
Medical equipment
-
Security systems
-
Internet and communication devices
Without a functioning generator, these systems stop working during outages. Regular maintenance and quick repairs help ensure the generator responds immediately when the power goes out. For homeowners who depend on standby power, keeping the generator in proper condition is an important part of home safety and comfort.
Cost of Generac 2800 Error Code Repair in Lakeland
The cost to repair the Generac error code 2800 can vary depending on the cause of the shutdown. In many cases, the repair is simple. A technician may only need to reset a switch or repair a loose wire. However, if the issue involves damaged components or electrical parts, the repair cost may increase.
In Lakeland, generator service companies usually begin with a diagnostic visit. During this inspection, the technician checks the shutdown circuit, control panel, and related wiring. Once the cause of the error is confirmed, they recommend the appropriate repair.
Typical Generator Repair Costs
Below are common price ranges homeowners may see for generator service.
-
Diagnostic service call: $100 – $200
-
Emergency stop switch replacement: $150 – $400
-
Shutdown circuit wiring repair: $200 – $600
-
Battery replacement: $120 – $300
-
Control board replacement: $500 – $1,500+
Minor issues, such as resetting a shutdown switch or tightening connections, may cost less. Larger electrical repairs or part replacements increase the total price.
Factors That Affect Repair Costs
Several factors influence the final cost of generator repair.
- Generator model
Different Generac models use slightly different control systems. Parts and repair time may vary based on the model.
- Age of the generator
Older generators sometimes require additional repairs because of worn switches, wiring, or sensors.
- Replacement parts
Costs increase if components like control boards, sensors, or wiring harnesses must be replaced.
- Emergency service
Emergency repair calls during storms or outages may include additional service fees.
Because each generator installation is different, the best way to estimate the cost is to schedule a professional inspection.
Get Professional Generac 2800 Error Code Repair in Lakeland
A standby generator is an important part of home power protection. When the system displays error code 2800, it means the auxiliary shutdown circuit has been activated. This safety feature protects the generator, but it also prevents the system from starting during a power outage.
Many shutdown issues are related to simple problems, such as a switched-off emergency stop button or a loose electrical connection. However, some situations require professional diagnostics to locate wiring faults or control system problems.
Professional generator technicians can:
-
Inspect the shutdown circuit and safety switches
-
Test electrical connections and sensors
-
Reset and reprogram the generator controller
-
Replace faulty switches or wiring components
-
Perform a full generator performance test
Regular maintenance and timely repairs help ensure your generator starts automatically when the power goes out.
If your system continues to show Generac error code 2800, scheduling generator repair in Lakeland can restore reliable backup power and keep your home protected during outages.

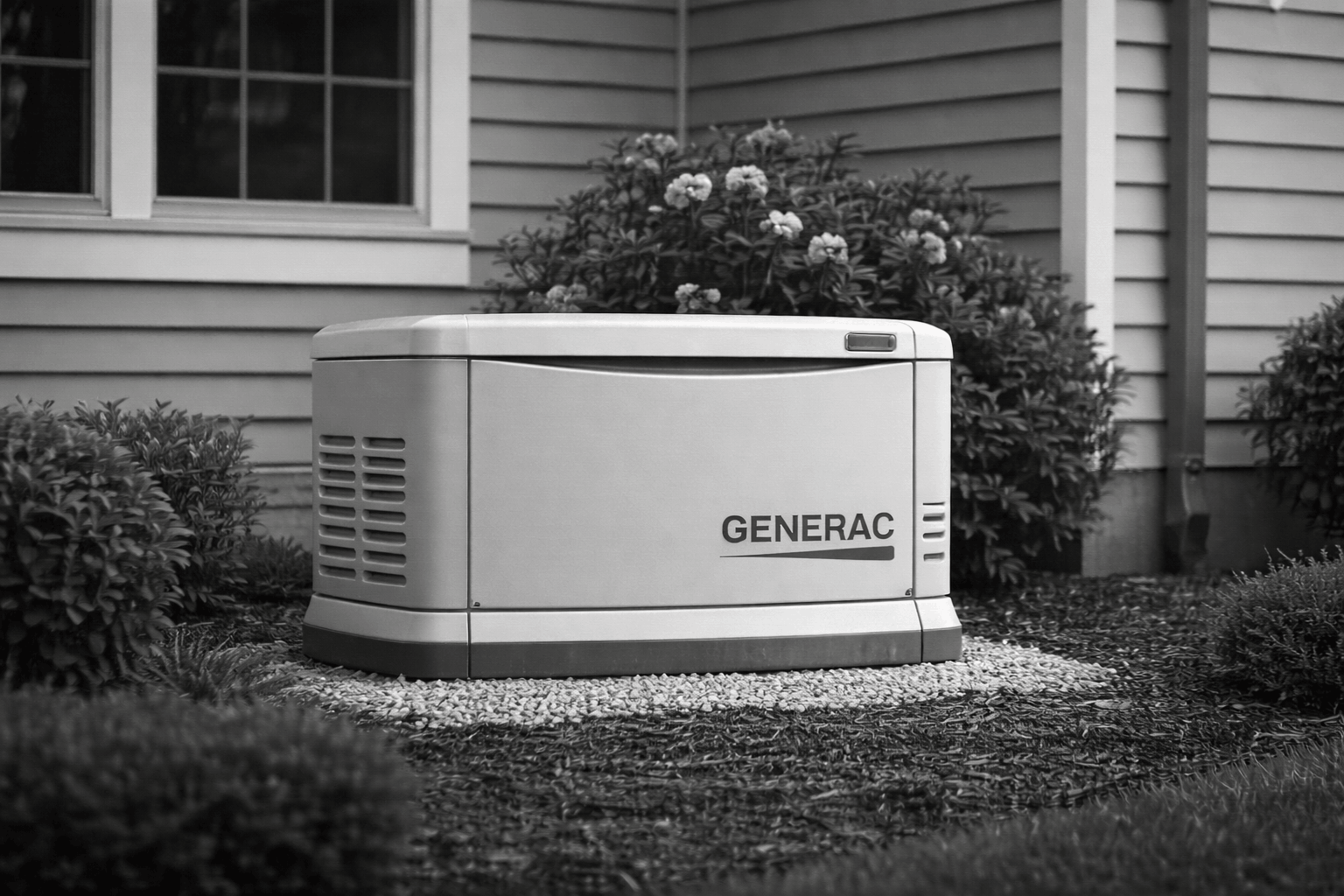

Need Generac 2800 Error Code Repair in Lakeland?
If your generator is showing error code 2800, it likely means the auxiliary shutdown system has been triggered. Sometimes it’s a simple reset, but wiring or switch issues may require professional repair.
At Hylton Electric, we quickly diagnose and fix generator problems so your backup power is ready when you need it. If you need Generac 2800 error code repair in Lakeland, we’re here to help.
- Phone: +1 863-624-7000
- Email: ray@hylton-electric.com
Frequently Asked Questions About Generac Error Code 2800
What does Generac error code 2800 mean?
Generac error code 2800 usually indicates an auxiliary shutdown condition. This means the generator’s safety circuit has been triggered, causing the system to stop running.
Common reasons include:
-
An emergency stop switch turned off
-
A loose shutdown circuit wire
-
A faulty auxiliary switch
The generator shuts down to prevent damage or unsafe operation. Once the source of the shutdown signal is fixed, the code can usually be cleared, and the generator returned to normal operation.
Why does my Generac generator show error code 2800?
This error appears when the generator detects an active signal in the auxiliary shutdown circuit. The system assumes a safety condition has occurred.
Typical causes include:
-
Emergency stop switch in the OFF position
-
Broken or disconnected wiring
-
Faulty shutdown switch
-
Controller detecting an open safety circuit
Because the shutdown system protects the generator and technicians, the unit will not start until the issue is corrected and the fault is cleared.
Can I reset the Generac error code 2800 myself?
Yes, in many cases, homeowners can reset the code if the shutdown was triggered accidentally.
Basic steps include:
-
Switch the generator controller to OFF mode
-
Press ENTER to clear the fault
-
Wait about 30 seconds
-
Return the system to AUTO mode
If the auxiliary switch was the issue, the generator should restart normally. However, if the error appears again, it may indicate a wiring or component problem that requires professional inspection.
Where is the auxiliary shutdown switch on a Generac generator?
The location can vary depending on the installation. Many generators include more than one shutdown switch connected to the same safety circuit.
Common locations include:
-
Inside the generator cabinet
-
Near the control panel
-
On an external emergency stop switch
-
Within building safety systems
If any of these switches are in the OFF position, the generator will enter shutdown mode and display error code 2800.
Is error code 2800 dangerous?
Error code 2800 itself is not dangerous. In fact, it is part of the generator’s safety system.
The auxiliary shutdown feature protects the equipment by stopping the generator when a safety signal is detected. This helps prevent:
-
Electrical hazards
-
Engine damage
-
Unsafe maintenance conditions
However, the generator will not operate during a power outage until the issue is resolved, which means backup power may be unavailable.
What causes the auxiliary shutdown circuit to activate?
Several conditions can activate the shutdown circuit. The system responds whenever it detects an open or triggered safety signal.
Common triggers include:
-
Emergency stop switch activated
-
Damaged wiring in the shutdown circuit
-
Corroded electrical connectors
-
A defective auxiliary switch
These components are designed to stop generator operation when a safety issue occurs. Identifying the exact trigger is the key to fixing the error code.
How long does it take to repair the Generac error code 2800?
Repair time depends on the cause of the shutdown signal. Some fixes are very quick, while others require electrical testing.
Typical repair timelines:
-
Simple reset or switch adjustment: 15–30 minutes
-
Wiring repair: 1–2 hours
-
Switch replacement: about 1 hour
If the issue involves deeper electrical diagnostics, the repair may take longer. A technician can usually identify the problem during the initial inspection.
Will my generator still run with error code 2800?
No. When error code 2800 appears, the generator enters shutdown mode. This prevents the system from starting automatically during a power outage.
The generator controller blocks operation until the shutdown signal is cleared. Once the issue is fixed and the code is reset, the generator should return to normal automatic operation.
Can a weak battery cause error code 2800?
In some cases, yes. A weak or failing battery can affect the generator’s control system.
Possible battery-related issues include:
-
Low voltage to the control panel
-
Failure of electrical circuits to operate correctly
-
System faults during startup
While battery problems are not the most common cause of code 2800, replacing an old battery can help prevent control system errors and improve generator reliability.
How do I know if the shutdown switch is faulty?
A faulty shutdown switch may appear normal but fail to send the correct signal to the generator controller.
Signs of a defective switch include:
-
The generator still shows code 2800 even when the switch is ON
-
Intermittent shutdown messages
-
The switch feels loose or worn
A technician can test the switch using a multimeter to verify whether it is properly closing the safety circuit.
What should I check first when error code 2800 appears?
The first step is to check the emergency stop switches connected to the generator.
Start with these quick inspections:
-
Confirm all shutdown switches are in the ON position
-
Look for obvious wiring damage
-
Check the control panel for additional fault messages
These simple checks often identify the problem quickly. If everything appears normal, deeper diagnostics may be necessary.
Can weather affect generator wiring and cause this error?
Yes. Generators operate outdoors and are exposed to environmental conditions.
Over time, weather can affect electrical components through:
-
Moisture buildup
-
Corrosion on wiring connections
-
Heat and temperature changes
These conditions may damage the shutdown circuit or loosen connections, which can trigger the auxiliary shutdown signal.
How much does it cost to fix the Generac error code 2800?
Repair costs vary depending on the cause of the issue.
Typical generator repair costs may include:
-
Diagnostic visit: $100–$200
-
Wiring repair: $200–$600
-
Switch replacement: $150–$400
If larger electrical components are involved, the cost may be higher. A professional inspection is the best way to determine the exact repair cost.
Should I turn off the generator when this error appears?
Yes. If the generator displays an error code, it is best to leave the system in OFF mode until the problem is diagnosed.
This helps prevent:
-
Additional system faults
-
Engine startup issues
-
Electrical damage
Once the shutdown signal is corrected, the system can be safely reset and returned to AUTO mode.
Can damaged wiring trigger Generac error code 2800?
Yes. The shutdown circuit depends on a complete electrical connection. If wiring becomes damaged, the controller may detect an open circuit.
Common causes of wiring damage include:
-
Rodents chewing insulation
-
Corrosion from moisture
-
Loose electrical connectors
Repairing or replacing damaged wires usually resolves the shutdown condition.
How often should I service my Generac generator?
Most manufacturers recommend annual generator maintenance.
Routine service typically includes:
-
Oil and filter replacement
-
Electrical connection inspection
-
Battery testing
-
Safety system checks
Regular maintenance helps prevent shutdown errors and ensures the generator runs properly during outages.
Can I troubleshoot generator shutdown errors myself?
Homeowners can safely perform basic checks, such as:
-
Inspecting emergency stop switches
-
Resetting the control panel
-
Checking for visible wiring damage
However, deeper troubleshooting involves electrical testing and internal components. If the error continues after basic checks, professional service is recommended.
Why does the error return after resetting the generator?
If the shutdown code keeps returning, the underlying problem is still present.
Possible reasons include:
-
A damaged shutdown switch
-
Loose wiring connections
-
A fault in the control circuit
Resetting the generator clears the code temporarily, but the system will trigger the error again until the cause is fixed.
Does Generac error code 2800 affect generator performance?
Yes. When this code appears, the generator stops operating entirely. The system cannot provide backup power until the shutdown signal is cleared.
While the generator itself may still be in good condition, the safety system prevents operation to avoid possible damage or hazards.
When should I call a generator repair professional?
You should contact a technician if:
-
The error code returns after resetting
-
The generator will not start during outages
-
You notice damaged wiring or switches
-
Multiple fault codes appear on the display
A professional can test the shutdown circuit, locate the fault, and restore the generator to reliable operation.
Leave a Reply
